Alpha 9500 HF Linear Amplifier Operating Manual Alpha Radio Products

Setting Up the Amplifier Product Release 1

DOCNUMBER 9500

Document Issue 1, Revision 7

Page 5–2 June 2009

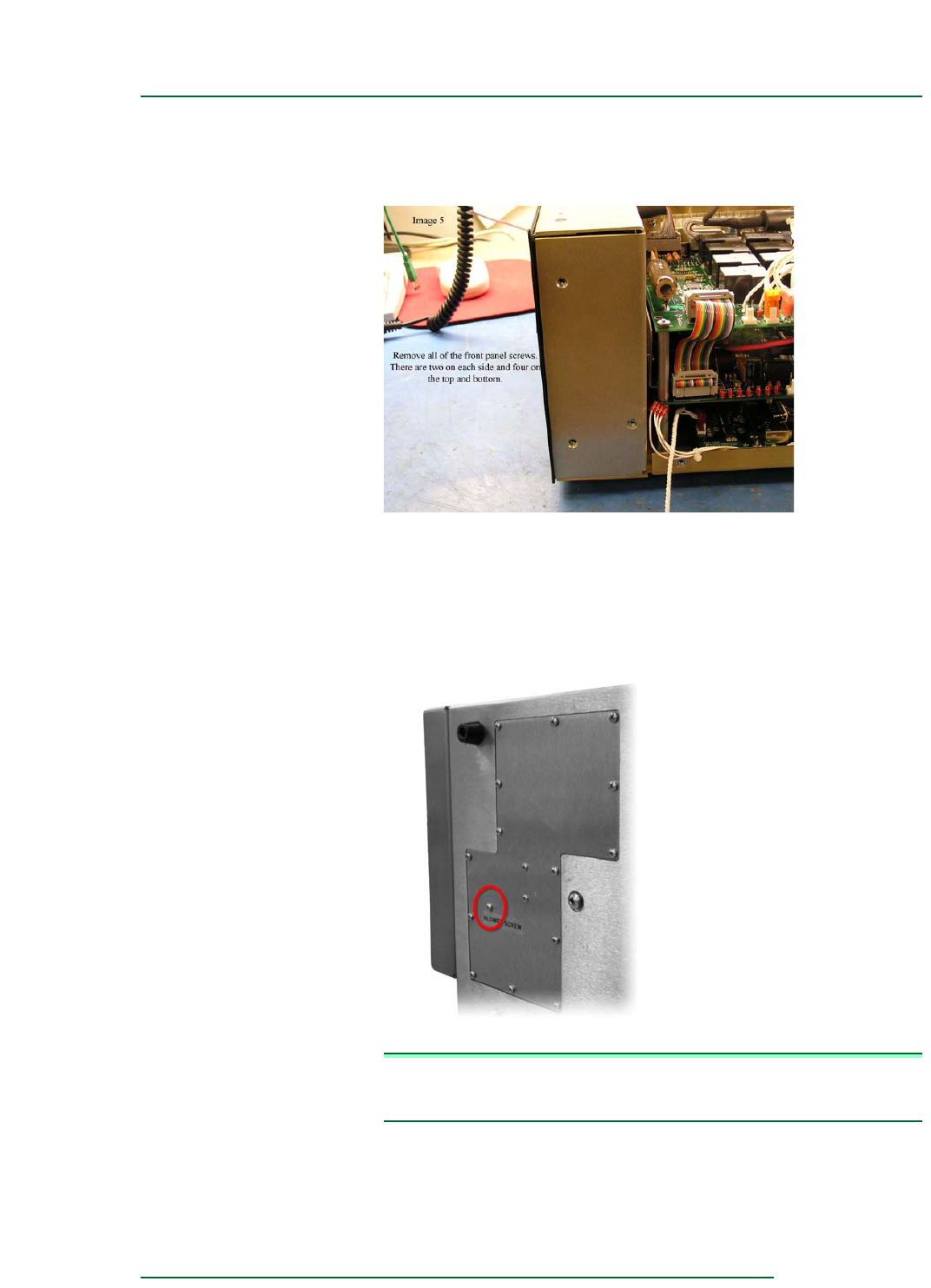

3b Remove the cover screws (Figure 5-1) and the cover.

Figure 5-1

Cover screws

3c Rotate the amplifier onto its right hand side.

3d While looking at the bottom, locate and remove the screw (labeled

BLOWER SCREW, Figure 5-2) that holds the blower in place

during shipping.

Figure 5-2

Blower screw

NOTE: Before shipping, reinsert the screw to prevent damage to the

blower.
